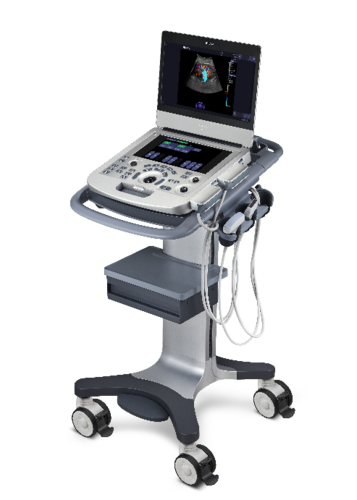

AX3 SREIES DIAGNOSTIC ULTRASOUND SYSTEM

High performance platform: 64 channels, quad-beam forming

Processor: ARM Memory: 2GB OS: Android

Hard Drive: 120GB SSD

System Boot-up: about 30s, Boot-up from sleep: 5s, Shutdown: 3s

Dimension: 375 mm×380 mm×58 mm

Weight depends on configuration, the minimum weight is 4.2Kg.

15.6-inch HD 1920x1080 monitor with open angle of 180°.

10.1-inch Touch screen

Dual transducer ports. Single or Dual transducer ports configurable

Dual batteries supporting at least 2h typical operation.

HDMI, 3 USB Ports(2USB 2.0, 1 USB 3.0), S-Video and Ethernet port.

MT-808 simple cart with adjustable height and glossary drawer.

TAI-Tissue Adaptive Imaging

eSRI- Adaptive Speckle Reduction Imaging

Adaptive Spatial Compounding Imaging

Harmonic Imaging

B mode Auto Optimization

Digital Multi-Beam forming

Trapezoid Imaging

Spectrum Enhancement

B Steer

Auto Doppler trace

Acoustic Power control
